PHD

Like the standard WHD, the PHD (pinhole detector) has a wider field of view then other detectors and is capable of capturing single events (flashes of radiation) as short as 100us. It can detect very small holes and defects in any product in its field of view. Flash of light generated by pinholes passing over its infrared bar are sensed by the detector, converted to electrical signals, and amplified.

A custom Windows application was developed to configure and monitor the sensor's operation.

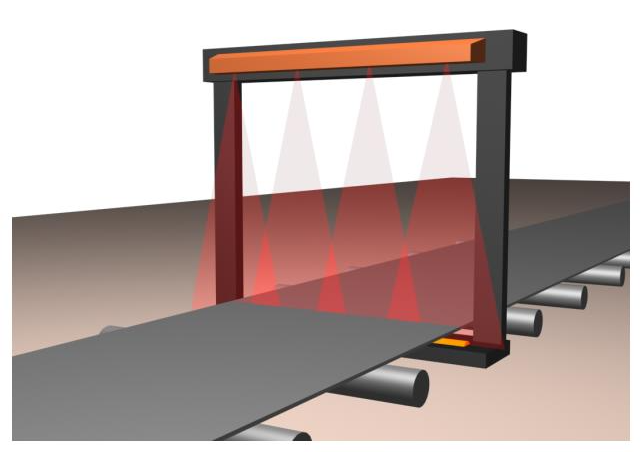

Illustration of Pinhole Detector setup
Bar with 4 detector modules

The standard sensor contains 4 detectors modules, each covering a 25 degree field of view (FOV).

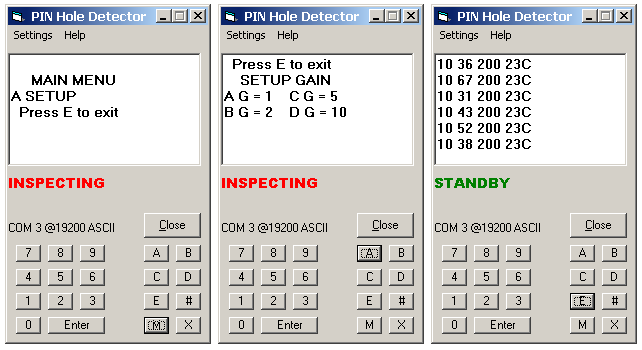

Pinhole Detector software screenshots

The sensor comes with custom software to configure and monitor its operation.


Technical Specifications (Per Module)

Power Requirements:

  • DC Option: 24V (23V to 25V) @ 150mA
  • AC option: 90VAC to 265VAC /10W

Outputs:

  • SPDT Relay

    • Contacts rating: 10 Amp at 250VAC
    • NO/NC contacts
    • UL, CSA, BSA approved

  • Opto-coupled MOSFET:

    • Load current: 50mA hold, 100mA max
    • Breakdown voltage: 100V
    • Isolation: 1500V r.m.s
    • UL, CSA, BSA approved

  • 4-20mA Current Loop:

    • Max load: 1k
    • Out- GND Isolation: 500VDC
    • Setup accuracy: 0.15%

Response time:

  • MOSFET: < 50us (typical 30us)
  • Hold Up Time: 40ms typical

Radiant Bar

  • Radiation Wavelength: 880nm to 940nm
  • Minimimum Radiating Element Width: 10mm
  • Optical Power Ripples: < 0.1%
  • Max Length: 10cm

If you require additional information about this product, please contact us at: jknanotech@outlook.com
