IS-3000-CW

The IS-3000-CW (cold width) is a sensor for measuring the width of any flat cold product through the use of an infrared bar which is placed behind the scanned object. The microcontroller calculates the product's width based on the shadow it casts onto the infrared bar.

The IS-3000-CW scanner is fully programmable via the RS-232 or RS-485 port using any ASCII terminal. For quick and easy installation and setup, ASC recommends a ASCII keypad, which can be conveniently powered from scanner RS-232 connector. For applications requiring setup and data collection, any PC computer with serial port and running a terminal program can be used.

IS-3000-CW block diagram
Infrared bar

A custom infrared bar is necessary for this sensor to operate.

IS-3000-CW inside its enclosure

The IS-3000-CW installed in ASC's trademark orange enclosure.

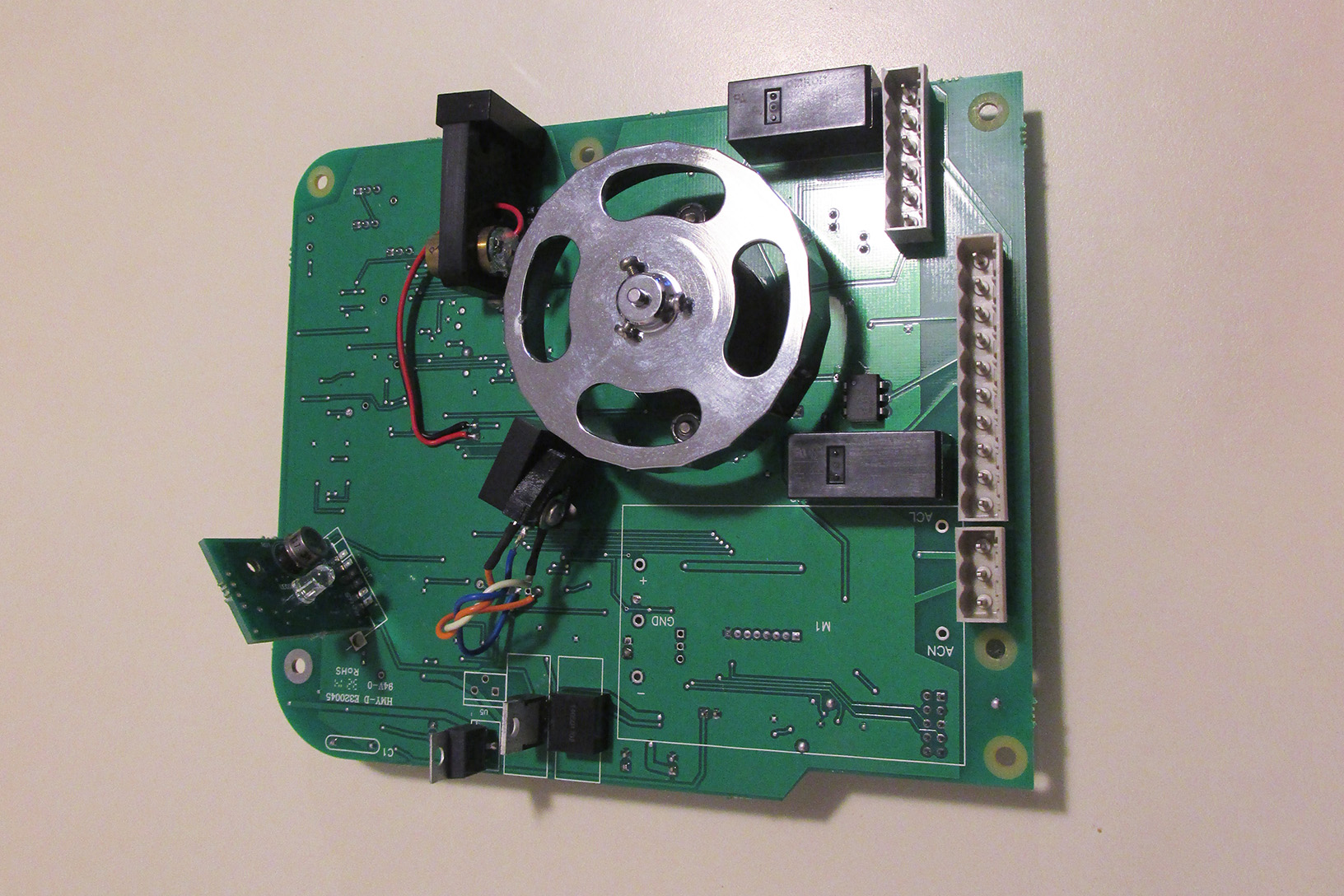

IS-3000 board with rotating mirror

Bottom of main board with rotating mirror.

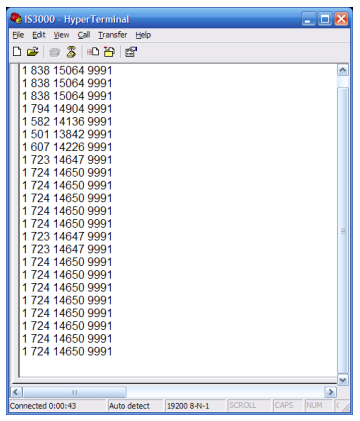

IS terminal output

The sensor outputs real-time data which can be used to control the process.


Technical Specifications

Power Input:

  • AC Power Input: Universal 100VAC to 240 VAC /15W
  • DC Power Input: 24 VDC (23V to 26V) @ 250mA Max
  • Ripple/Noise: < 200mV p-p

Outputs:

  • Product Detect and Fault Relay

    • Contacts rating: 4 Amp at 250VAC
    • Relay response time: < 7ms
    • SPDT Relay
    • UL, CSA, BSA approved

  • Opto-Coupled MOSFET:

    • Load current: 200mA max
    • Breakdown voltage: 100V
    • Response time: 100 uS
    • Isolation: 1500V r.m.s
    • UL, CSA, BSA approved

  • Analog 1, Analog 2:

    • D/A Converter Resolution: 16 bit
    • Nonlinearity: +/- 0.012%
    • Max load Resistor: 1kΩ
    • Out to Chasis GND Isolation: 500VDC

  • Options:

    • 4-20mA, 0-20mA, 0-10V on Analog 1 and 2 outputs

Response time:

  • Detection ON time

    The time from the moment of an object appearing in the field of view to the moment when output changes state.

    • MOSFET Output: < 2ms
    • Relay Output: < 10 ms

  • Detection Off time

    The time from the moment of an object disappearing from the field of view to the moment when output changes state.

    • MOSFET Output: 2ms + holdup time
    • Relay Output: 10 ms + holdup time

Other:

  • RS-422 Output Max Range: 1000m (24AWG twisted pair cable)
  • RS-232 Input/Output: Standard 9-pin connector
  • Operating Temperature Range : -20°C (-4°F) to 60°C (140°F)
  • Storage Temperature Range : -20°C (-4°F) to 70°C (158°F)

  • Aiming Laser:

    • Power: < 1mW (Class 2)
    • Wavelength: 650nm

If you require additional information about this product, please contact us at: jknanotech@outlook.com
